APPENDIX D
Projection and Location

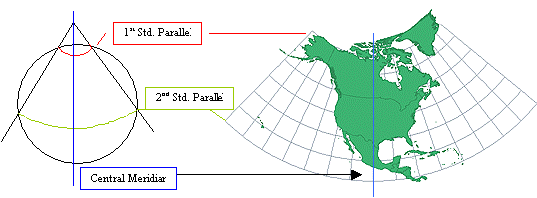

Example
of How the Albers Projection is Derived:

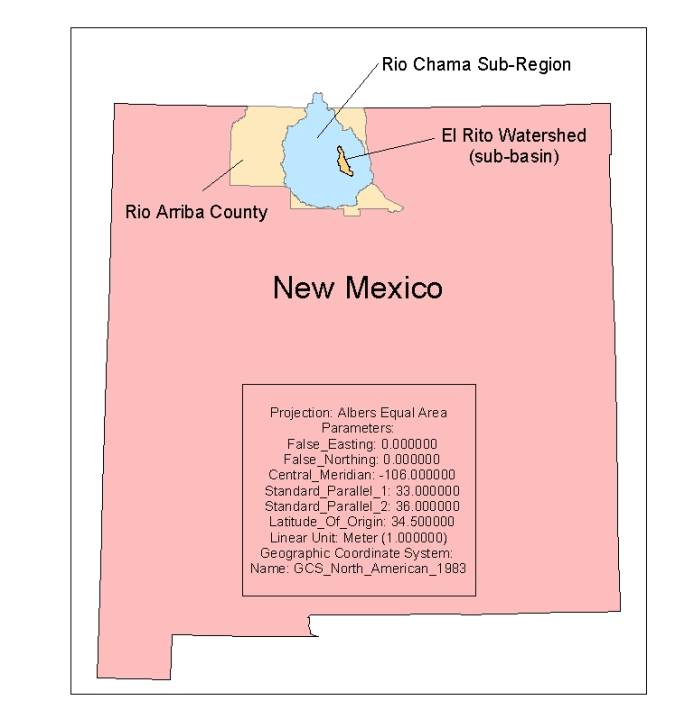

Projection Information for
the Project Area:
All coverages and images were
projected into Albers Equal Area (This conic projection uses two standard
parallels to reduce distortion. Although neither shape nor linear scale are
truly correct.)
First, I re-projected one coverage into the desired Albers Equal Area
projection using ArcToolbox and saved the (output) projection file. This file was then used for all subsequent
coverage re-projections. The following
is the projection file (.prj) created in Toolbox:
(*NOTE* is was not necessary to have the input
projection definition in the projection file (.prj), as each coverage was in
the same initial projection.)
Project.prj
OUTPUT
PROJECTION Albers
UNITS meters
DATUM NAD83
PARAMETERS
33 00 00.0
36 00 00.0
-106 00 00.0
34 30 00.0
