Pavel Vakhlamov HW4

1) Download data from /nfs/user/c/cegis/ce547/assign4 on ftp server.

2) Import data E00 files

a. Use Conversion Tool > To Coverage > Import from E00

b. Save converted files

c. Add data to a new map

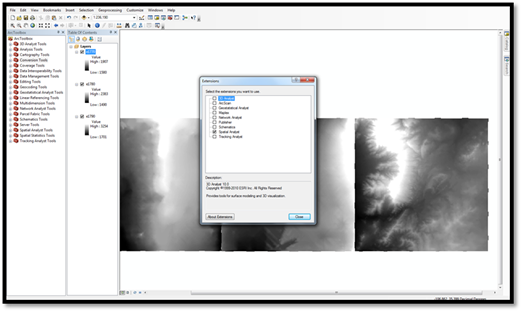

3) Activate Tool Extensions

Customize > Extensions > Spatial Analyst

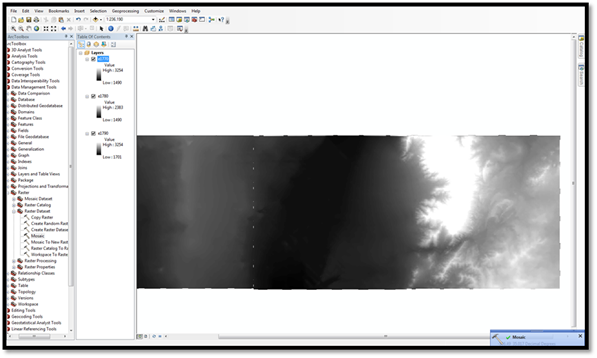

4) Using Mosaic tool (Data Management Tools > Raster > Raster Dataset > Mosaic ) create a continuous surface.

5) Set a different color ramp by going to Properties > Symbology > Stretched

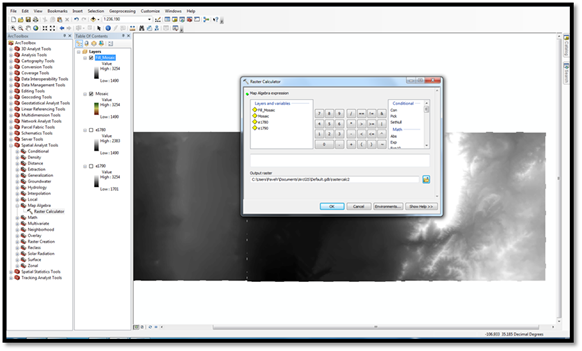

6) Use Fill tool in Spatial Analyst > Hydrology to remove pits in the raster or by using a command line (Con(IsNull("calculation"), FocalStatistics("calculation", NbrRectangle(4,4, "CELL"), "MEAN"), "calculation")) in Spatial Analyst > Raster Calculator

As the result we have created continuous DEM

Part 2

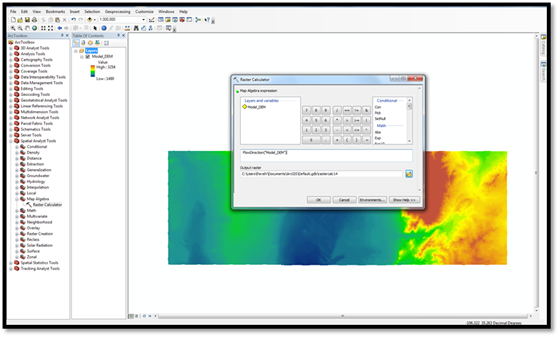

1) Using Flow Direction tool or a command line (FlowDirection("Filled_DEM")) calculate flow direction.

Result of Flow Direction calculation

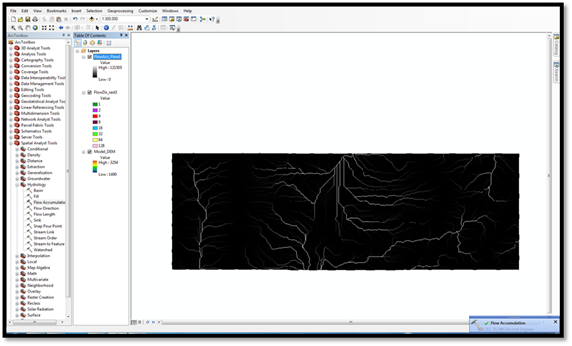

2) Using Spatial Analyst > Hydrology > Flow Accumulation Tool or command line (FlowAccumulation("Flow_Dir"))) calculate flow direction.

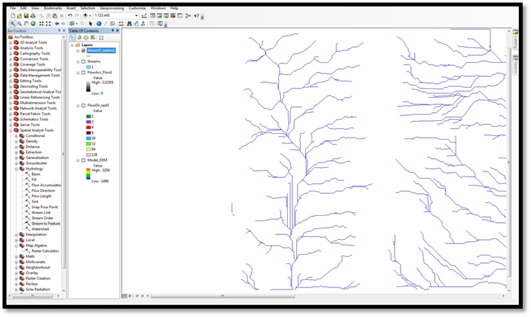

3) Using Stream to Feature tool in special analyst > hydrology or command line (Con("Flow_Accu">278,1)) in raster calculator we are able to create stream polylines

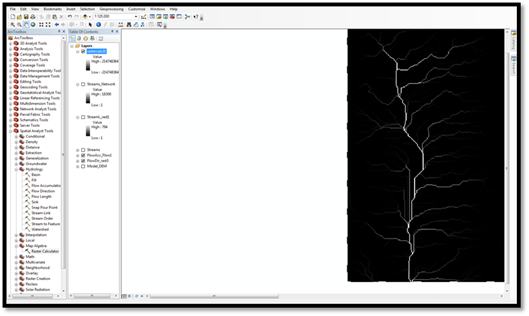

4) Using Spatial Analyst > Hydrology > Stream Link or raster calculator (StreamLink("Streams","Flow_Dir") we are able to connect generated polylines in to a stream network.

5) Determination of outlets is performed by using ZonalStatistics("Streams_Network", "Value", "Flow_Accu", "Maximum") in Spatial Analyst > Raster Calculator

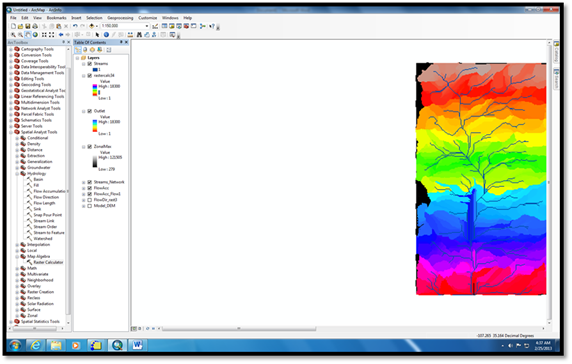

6) Watershed delineation is performed either by Spatial Analyst > Hydrology > Watershed tool or Raster Calculator (Watershed("Flow_Dir", "Outlets")

Format layout

Export Map
