Methods
and Study Area
The
study area is eastern Bernalillo County, New Mexico, chiefly the Sandia
Mountains and the surrounding area, including the parts of the City of Albuqueruqe, the Pueblo of Sandia, the Village of Tijeras,
and the foothills of the Manzano Mountains. Four weather stations with sufficient data to compute ET using the Kimberly-Penman
method were identified. Two of the weather stations belong to the Remote
Automatic Weather Stations (RAWS) network, which analyzes meteorological data
to compute fire danger ratings throughout the country (https://raws.dri.edu/). These stations include Sandia Lakes, located in the Rio Grande Bosque
riparian ecosystem in Sandia Pueblo, and Oak Flats, located on US Forest
Service land southeast of Tijeras, NM (Fig. 1).
The other two stations are part of a meteorological monitoring network
run by the US Geological Survey, and they include Sandia Mountains Upper Precip Site (Site 1C), located near the Sandia Crest, and
Tijeras ET, located in Tijeras, NM (www.usgs.gov). The elevations of the stations range from 5000 ft
above sea level at Sandia Lakes to 10,091 ft above sea level at Sandia
Mountains Upper Precip Site (Table 1). The stations are located in various ecosystems: a cottonwood-dominated
riparian woodland (Sandia Lakes), a Pinyon-Juniper woodland (Tijeras ET), and
Ponderosa Pine-scrub Oak woodland (Oak Flats) and a mixed aspen-coniferous
forest (Sandia Mountains Upper Precip Site). The ET
values for the weather stations were calculated using the Kimberly-Penman
equation (Appendix A).
Table 1. Weather Stations
Site_name |
Latitude |
Longitude |
Elevation_ft |
Agency |
Sandia Lakes |
35.23 |
-106.591 |
5000 |
BIA |
Oak Flats |
35.00417 |
-106.322 |
7550 |
USFS |
Sandia Mtns Upper Precip Site (Site
1C) |
35.20803 |
-106.435 |
10091 |
USGS |
Tijeras ET |
35.07624 |
-106.384 |
6366 |
USGS |

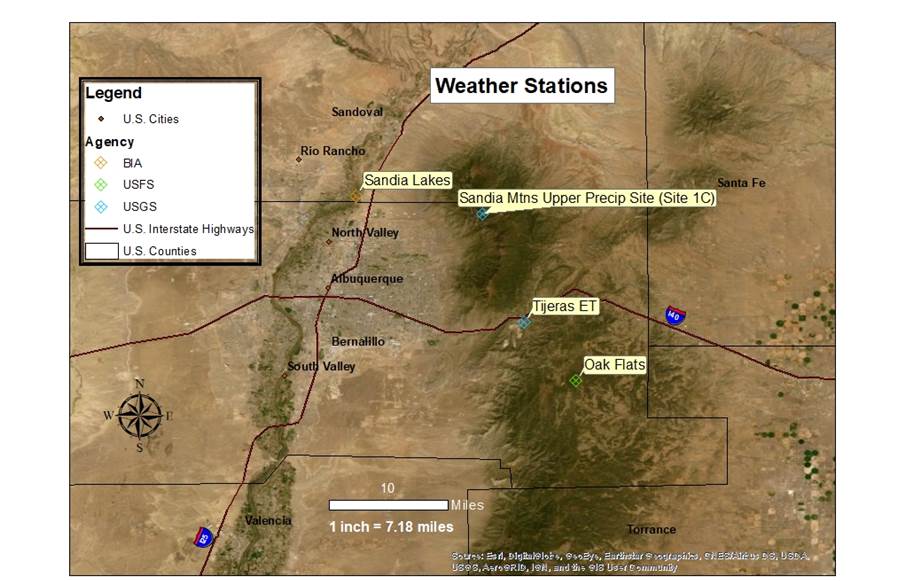

Figure 1. Study Area with Weather
Station Locations
For
comparison, MODIS 500-m 8-day composite evapotranspiration data was obtained
from the NASA EarthExplorer website
(search.earthdata.nasa.gov). The evapotranspiration from each 8-day period,
beginning on the first day of each year, was expressed in units of kg/m2/8-days
in a 500x500m pixel raster grid. Using ESRI ArcMap, erroneous data was
nullified and then filled in (Figure 2). The evapotranspiration data calculated
from the weather stations was then summarized into 8-day totals to match the MODIS
8-day composite grids, and a separate raster surface was created for each 8-day
period (Figure 3). Then, the raster calculator tool in ArcMap was used to
calculate the percent difference that the MODIS data deviates from the weather
station data for each cell in each raster image. The GIS workflow is described
in detail in Appendix B.
All
layers in the map were projected into North American Datum of 1983 (NAD 1983).
NAD 1983 is the datum to which the coordinates for the weather stations are
referenced to. It also provides an accurate visual representation of the study location
and it is the datum that is most familiar to authors of similar studies.
Figure 2. Landsat 8-day composite ET
data, with erroneous data nullified and filled

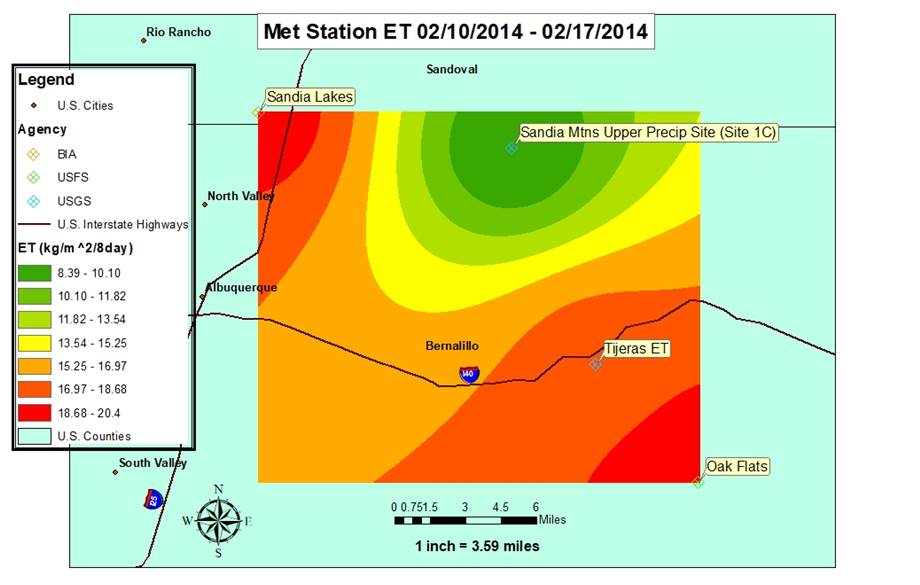

Figure
3. Raster surface of ET derived from weather stations, 2/10/2014 – 2/17/2014
