Einthoven’s Triangle & The Augmented Leads

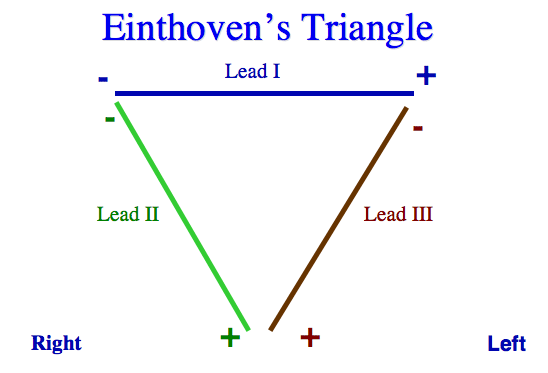

Interestly, even those the Leads in Einthoven's triangle form a 'triangle', notice that when we draw Einthoven's triangle we do NOT connect the edges. This shows that Lead I, Lead II and Lead III are electrically independent.
Introducing the Augmented Voltage Leads

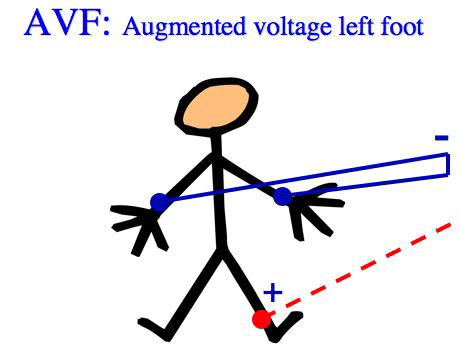

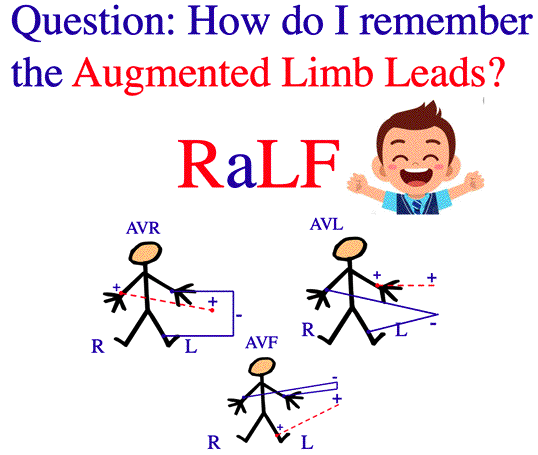

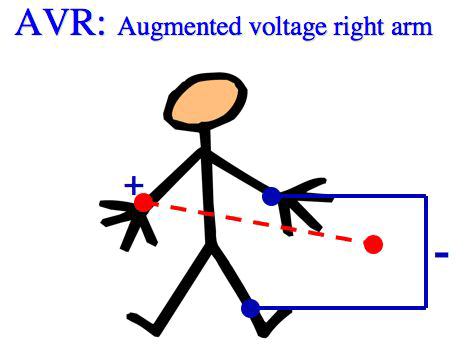

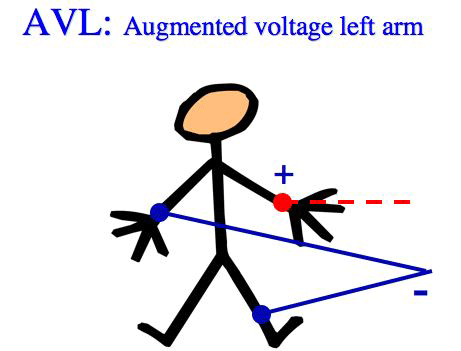

The Augmented Voltage Leads are UNIPOLAR. There is one POSITIVE pole in reference (i.e., average) to two NEGATIVE poles.

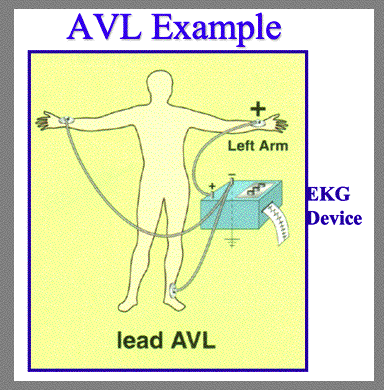

Right.............................................................Left

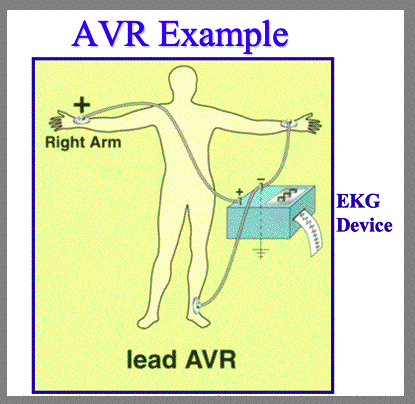

Right.............................................................Left

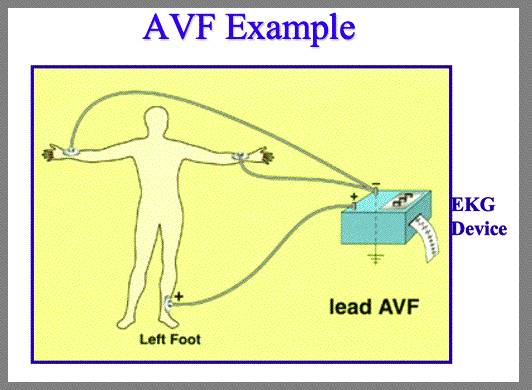

Right.............................................................Left
Some of Einthoven’s calculations in his efforts to understand the electrical vectors of the heart.
