Optics
6D - Interference
 |

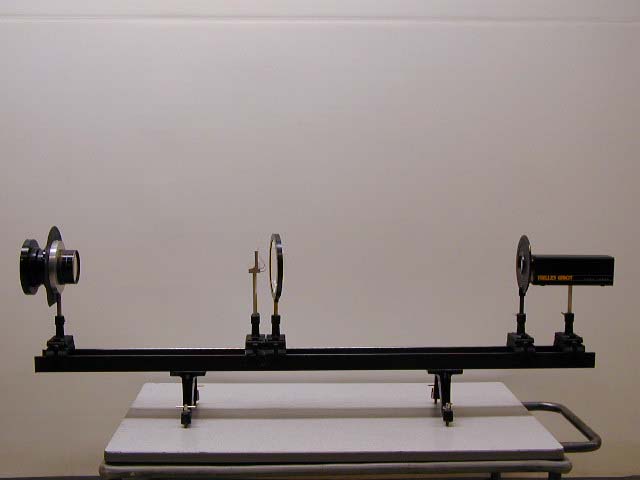

6D 15.10 - Fresnel Bi-prism:
Demonstrates: Splitting of an image with prisms. Description: Laser beam is focused through lenses and a biprism. |
 |

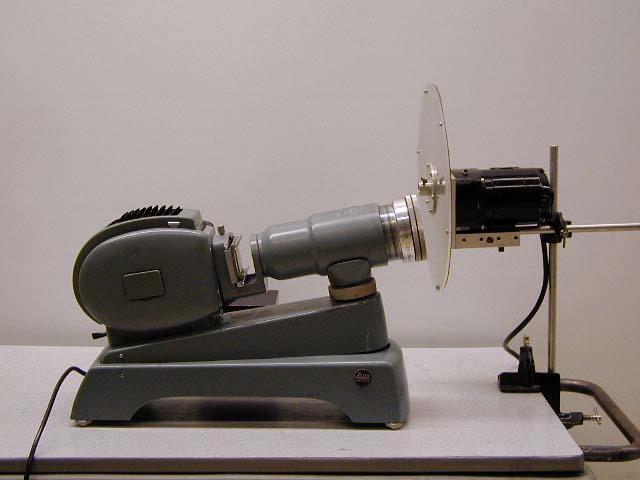

6D 15.20 - Psychedelic Effects:
Demonstrates: Just how bad the 60's really were. Description: 12" polarizer is mounted on a geared motor with variable speed. Small polarizer and image disk are placed in the slide holder. |
 |

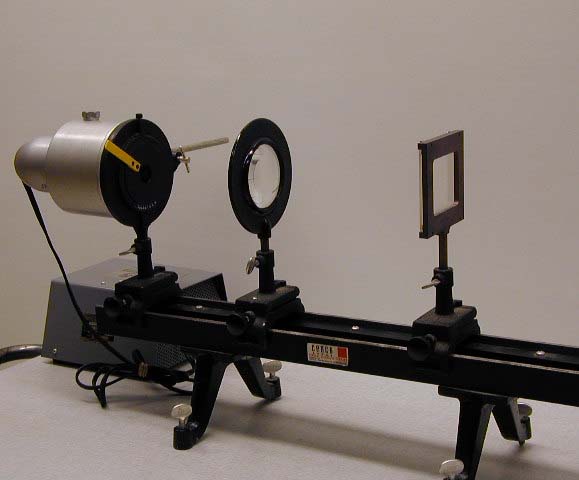

6D 20.30 - Grating Spectrometer:
Demonstrates: Spectrgram of UV light. Description: Spectrogram is projected onto a screen. |
 |

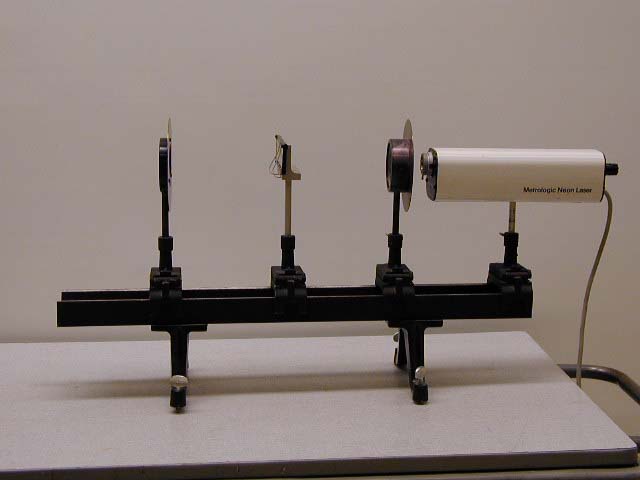

6D 20.40 - Laser with Interference Patters:
Demonstrates: Reflection of light. Description: Bird is upside down in the box but the mirror flips image to right side up. |
 |

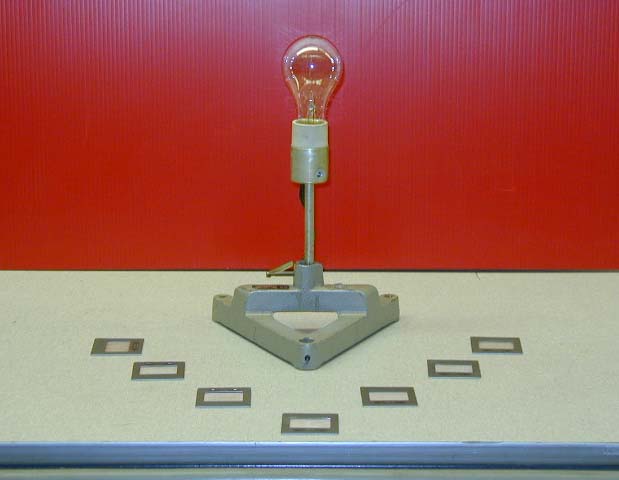

6D 20.50 - White Light with Gratings:
Demonstrates: Spectrum of white light. Description: Use an incandescent bulb with the pass out slits. |
 |

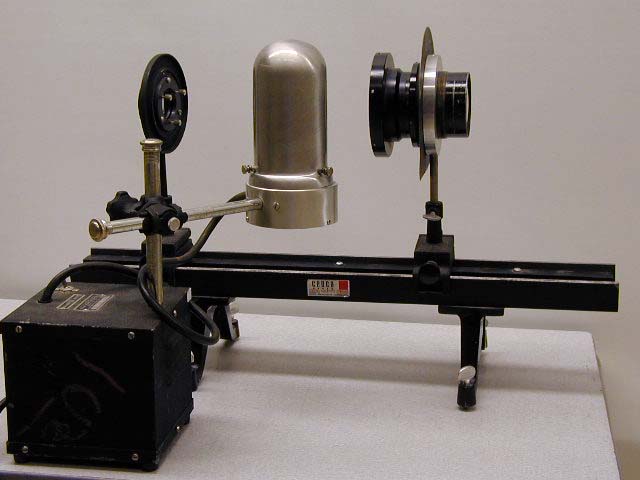

6D 30.10 - Newton's Rings:
Demonstrates: Constructive and destructive interference patterns in color. Description: Colored rings display interference patterns on a screen. Thumbscrews change patterns. |
 |

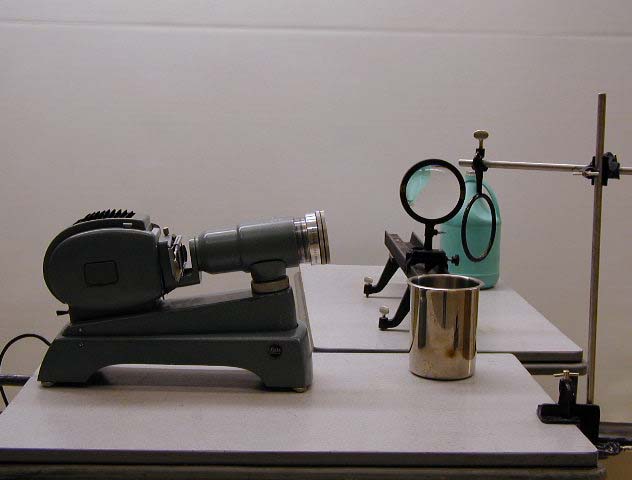

6D 30.20 - Film Interference:
Demonstrates: Interference patterns. Description: Light reflects off a soap film and projected. Interference patterns are visible. |
 |

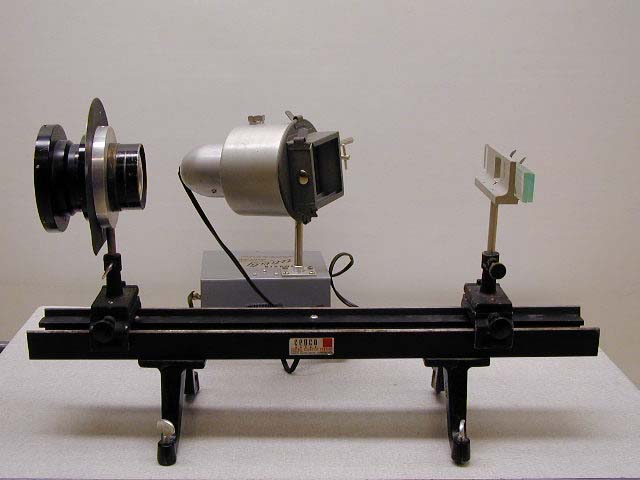

6D 30.30 - Thin Film of Air:
Demonstrates: Interference patterns. Description: A film of air between two pieces of glass creates interference patterns. |
 |

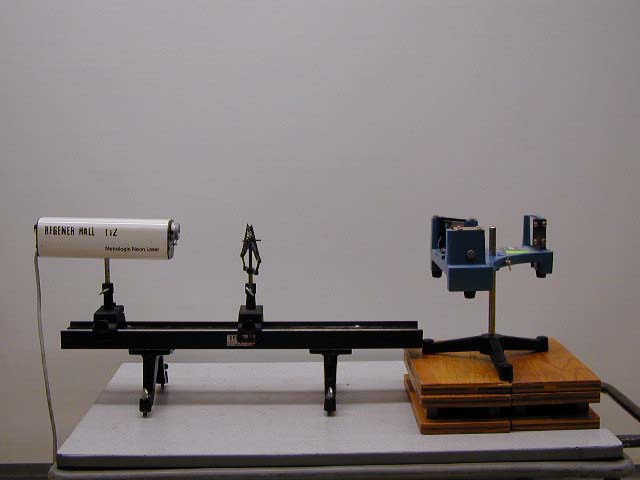

6D 40.10 - Michelson Interferometer with Laser:
Demonstrates: Interferometry. Description: Unit is set up on a small optical bench with the interferometer on a separate stand. Place demo about 15 to 20 feet from screen. |
 |

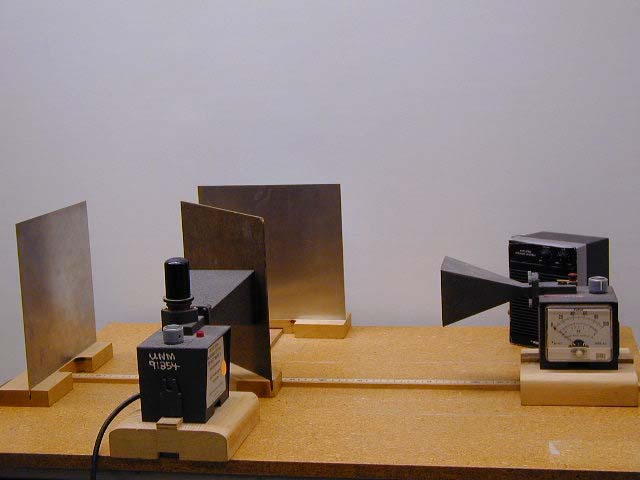

6D 40.20 - Michelson Interferometer with Microwaves:
Demonstrates: Interferometry. Description: Unit sets up on particle board base with guide strips to simplify alignment. |
 |

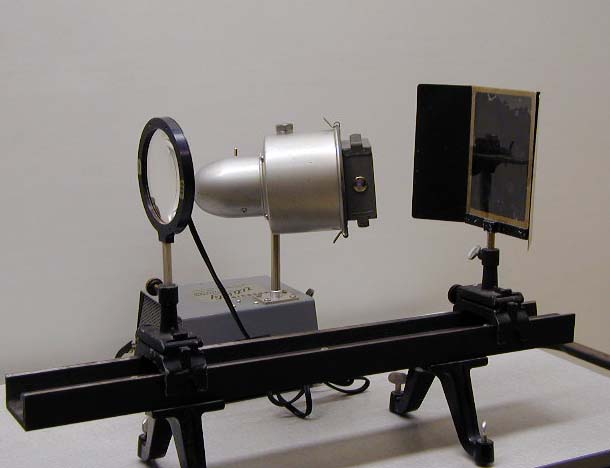

6D 40.30 - Pohl's Mica Sheet Interferometer:
Demonstrates: Interference patterns. Description: Interference pattern produced by mica sheet is displayed on to a screen. |
